Hexagonal Close-Packed (HCP) Crystal Structure

A Complete Structural Analysis for Materials Science Students

By Dr. Rolly Verma  |  AdvanceMaterialsLab.com  |  Published: March 2026  |  B.Sc. / M.Sc. Materials Science & Engineering

1. Introduction: Setting the Stage

Welcome to this tutorial. If you have already studied the Body-Centred Cubic (BCC) and Face-Centred Cubic (FCC) structures, you are now ready to encounter the third great member of the crystal structure family — the Hexagonal Close-Packed (HCP) structure. If this is your first encounter with crystal structures, do not worry at all. We will build every idea from the ground up, one brick at a time.

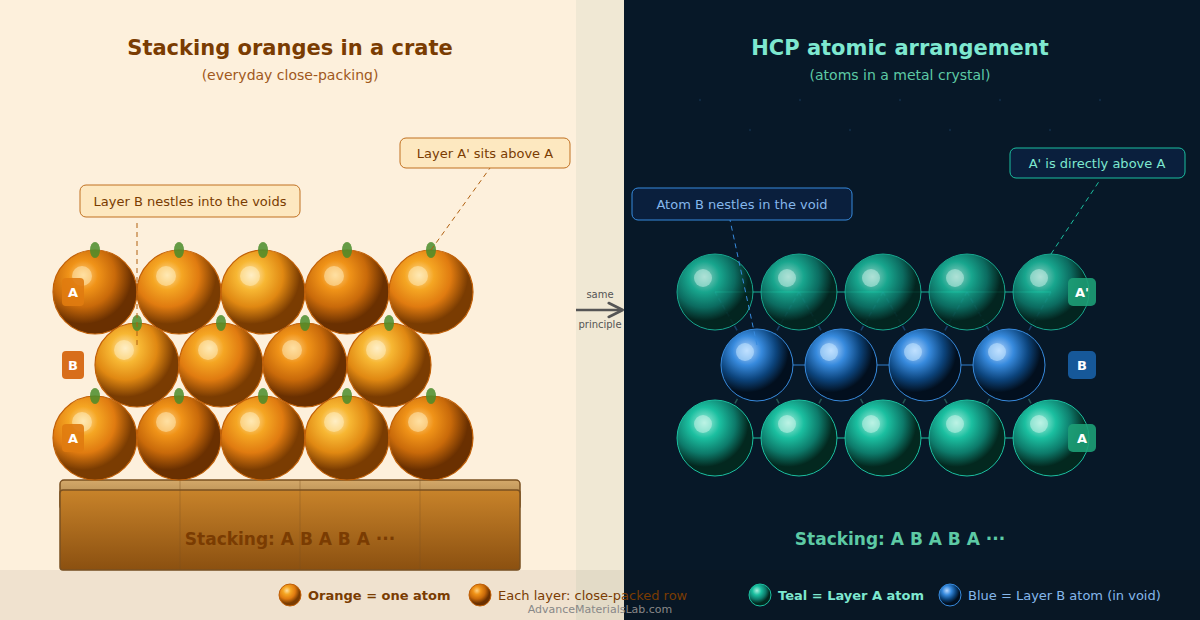

Let us start with a simple question. Have you ever stacked oranges in a fruit basket? If you have, you may have noticed that the most natural way to stack them is to first lay them in a flat layer, and then nestle the second layer in the dips between the oranges of the first layer. This gives the most compact arrangement possible. Nature does exactly the same thing with atoms in certain metals, and the result is the Hexagonal Close-Packed (HCP) crystal structure.

HCP is one of the two ways to achieve the densest possible packing of identical spherical atoms — the other being the Face-Centred Cubic (FCC) structure. Both achieve the same theoretical maximum packing efficiency of 74%. The difference between them is subtle but profoundly important: it lies in how the close-packed layers are stacked on top of each other. This single difference in stacking pattern leads to different slip systems, different plastic deformation behaviours, and ultimately different engineering properties.

2. Crystalline Solids and the Concept of a Lattice

2.1 What Makes a Solid 'Crystalline'?

In materials science, we broadly classify solids into two categories: crystalline and amorphous. In a crystalline solid, the atoms, ions, or molecules are arranged in a perfectly ordered, repeating three-dimensional pattern that extends over the entire material. This long-range order is what distinguishes a crystalline solid from a glass or an amorphous material, where there is only short-range or no order at all.

Think of a tiled floor. If the tiles are arranged in a perfectly regular geometric pattern — say, identical square tiles in neat rows and columns — it is analogous to a crystalline solid. If the tiles are placed randomly with no repeating pattern, it is analogous to an amorphous solid. Most metals and ceramics that we use in engineering are crystalline in nature.

2.2 The Space Lattice and the Unit Cell

To describe a crystal mathematically, we use the concept of a space lattice — an infinite array of points in space where each point has an identical environment. The space lattice is an abstract geometric framework; atoms or groups of atoms are then associated with each lattice point.

From this infinite lattice, we identify the smallest repeating unit, called the unit cell. The unit cell is the fundamental building block of the crystal. By translating (repeating) the unit cell in three dimensions, we can reproduce the entire crystal structure. Think of the unit cell as a single LEGO brick — one brick looks simple, but stacking millions of identical bricks in all directions creates the entire structure.

A unit cell is completely described by six parameters: three edge lengths (a, b, c) and three angles (α, β, γ) between those edges. These six parameters are known as the lattice parameters. For the hexagonal system, the relevant parameters are the in-plane edge length a and the height c (the vertical edge of the hexagonal prism).

3. Building the HCP Structure: A Step-by-Step Construction

This is the heart of our tutorial. We are going to construct the HCP structure layer by layer, as if we were actually placing atoms in space. By the time we finish, you will have a clear mental image of exactly how the atoms are arranged and why this arrangement is called 'close-packed'.

3.1 Step 1 — The Close-Packed Layer (Layer A)

Begin by placing identical spherical atoms (think of them as billiard balls) on a flat surface. Arrange them so that each atom touches as many neighbours as possible. The most efficient way to do this on a flat surface is to arrange them in rows, and then offset alternate rows by half a ball diameter so that balls in the second row nestle into the gaps of the first row.

The result is a hexagonally arranged layer — when you look at any single atom, it is surrounded by exactly 6 others at the same level. Each atom touches all 6 neighbours in the plane. This is the close-packed layer, and it has the highest possible packing density for a single flat layer. We call this Layer A.

Notice the geometry: the 6 surrounding atoms form a regular hexagon around the central atom. The centre-to-centre distance between any two touching atoms equals 2R, where R is the atomic radius. Equivalently, this distance equals the lattice parameter a. So in HCP, a = 2R always.

3.2 Step 2 — Identifying the Voids Above Layer A

Now look at Layer A from above. Between the atoms, you will notice two types of triangular gaps:

• Type 1 (B-sites): Triangular gaps where the three surrounding atoms have their vertices pointing upward — these look like upward-pointing triangles from above.
• Type 2 (C-sites): Triangular gaps where the three surrounding atoms have their vertices pointing downward — downward-pointing triangles from above.

In a close-packed layer, Type 1 (B) and Type 2 (C) voids alternate across the entire layer. The key question that distinguishes HCP from FCC is: which set of sites do we use for the second layer? For the HCP structure, we will use the B-sites for the middle layer.

3.3 Step 3 — Placing Layer B (The Middle Layer)

Now take a second set of atoms and place them above the B-sites — the upward-pointing triangular voids of Layer A. Each atom in this new layer sits directly above the centre of one of these triangular voids, nestled comfortably between three atoms of Layer A below it.

In each unit cell, there are exactly 3 atoms in the middle B layer. Each B-layer atom is simultaneously sitting in the hollow of 3 atoms from Layer A below, and it will be cradled by 3 atoms from Layer A' above — totalling 12 nearest neighbours, which is the coordination number of HCP.

3.4 Step 4 — Placing Layer A' (The Critical Step!)

Now we must place the third layer. This is where HCP and FCC diverge — the single most important structural difference between the two close-packed structures.

In HCP, the stacking sequence repeats as A-B-A-B-A-B indefinitely. This ABABAB stacking pattern is the defining signature of the HCP structure. Despite the structural difference with FCC, both achieve the same 74% packing efficiency — the maximum theoretically possible for identical spheres.

3.5 The Complete HCP Unit Cell

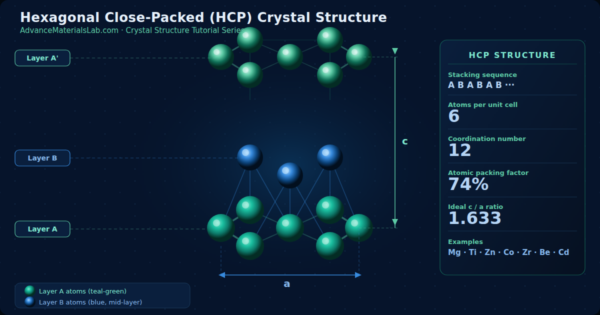

The HCP unit cell is a right hexagonal prism. Let us describe its geometry precisely:

• Base: A regular hexagon with edge length a (the atomic diameter in the close-packed plane).
• Height: The vertical distance c, which is the repeat distance along the stacking direction (the c-axis or [0001] direction).
• Contents: Atoms from the bottom hexagonal face, the top hexagonal face, and 3 interior atoms from Layer B.
• Lattice parameters: Defined by two quantities only: a and c. The geometry of the hexagonal close-packed structure is defined by two lattice parameters, a and c. The complete HCP unit cell can be visualized as a right hexagonal prism as shown in the diagram below.

4. Detailed Structural Analysis of HCP

4.1 Number of Atoms per Unit Cell

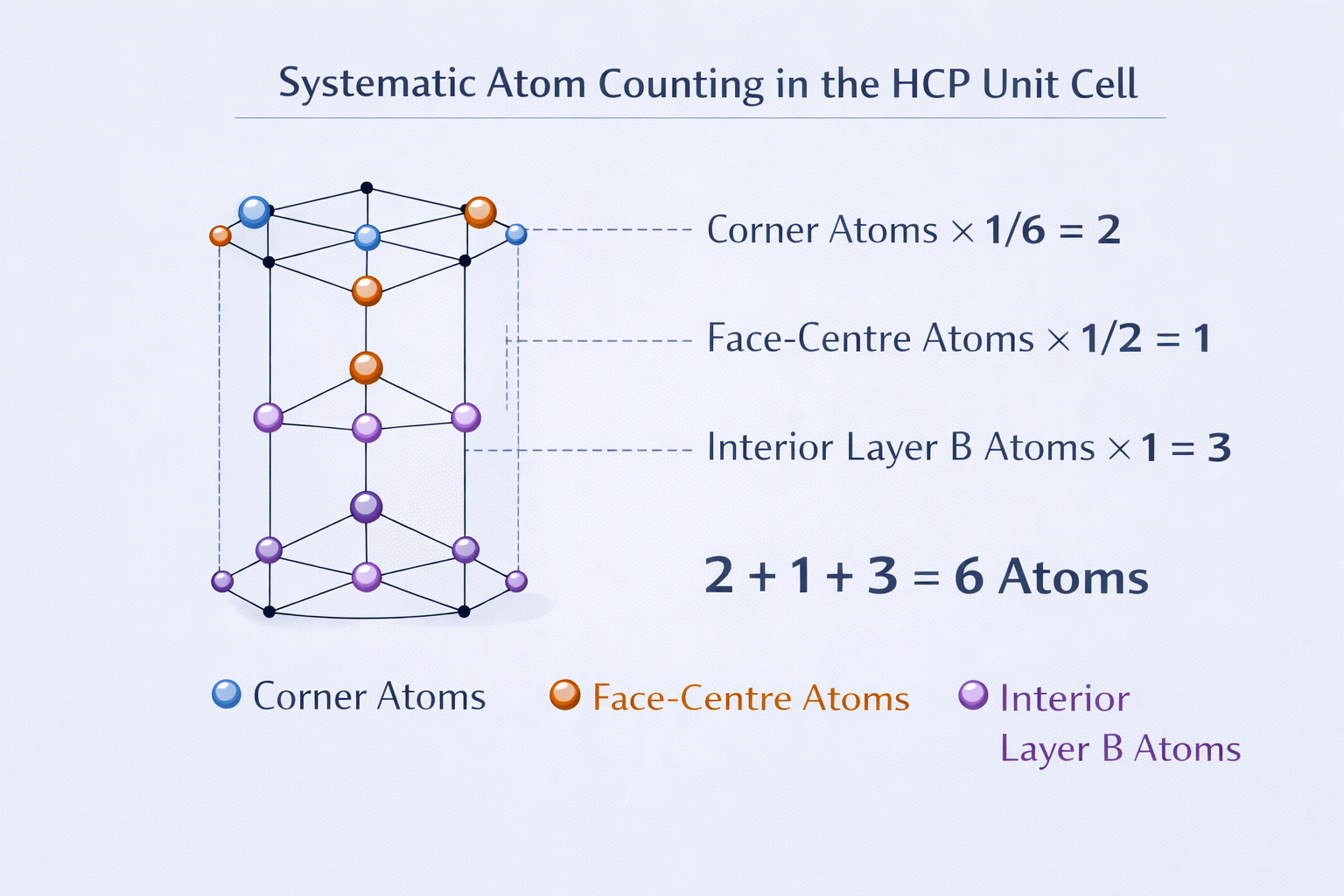

This is a fundamental calculation. We need to count how many atoms effectively belong to one HCP unit cell, accounting for the fact that atoms on faces and edges are shared between adjacent unit cells.

(A) Atoms at the 12 corners of the hexagonal prism

Each corner of the hexagonal prism is shared between 6 different unit cells (since 6 prisms meet at every corner vertex in a hexagonal lattice). Therefore, each corner atom contributes 1/6 of itself to our unit cell.

(B) Atoms at the 2 hexagonal face centres (top and bottom)

The centre of each hexagonal face is shared between 2 unit cells (the one above and the one below). Therefore, each face-centre atom contributes 1/2 to our unit cell.

(C) The 3 interior atoms (Layer B — middle layer)

These atoms sit entirely inside the unit cell. They are not shared with any neighbour. Each contributes fully.

Total atoms per unit cell:

4.2 The Coordination Number of HCP

The coordination number (CN) is defined as the number of nearest neighbours that any given atom has — the number of atoms in direct contact with the reference atom.

Let us count the nearest neighbours of any one atom in the HCP lattice. Choose the centre atom of the bottom hexagonal face as our reference atom:

• In the same close-packed layer (Layer A): 6 nearest neighbours, all at distance a = 2R, all touching the reference atom in the same plane.
• In Layer B (middle layer, directly above): 3 nearest neighbours, each at the same distance a = 2R.
• In Layer A below (one cell down): 3 nearest neighbours, similarly at distance a = 2R.

4.3 Derivation of the Ideal c/a Ratio

This is one of the most elegant derivations in introductory materials science. Consider a central atom in Layer B and the three atoms below it in Layer A. These four atoms form a regular tetrahedron with all six edges equal to a.

Step 1: Finding the height of the tetrahedron

The distance from any vertex of an equilateral triangle of side a to its centroid is:

Using the Pythagorean theorem for the tetrahedron height h:

Step 2: Finding c from h

Since Layer B sits exactly midway between the two A layers, the full prism height c is twice h:

Step 3: The c/a ratio

4.4 Atomic Radius vs. Lattice Parameter

In HCP, atoms in the same layer are touching. Therefore, the centre-to-centre distance equals twice the atomic radius:

4.5 Volume of the HCP Unit Cell

The unit cell is a regular hexagonal prism with base edge a and height c. The area of a regular hexagon with side a is (3√3/2)a². Therefore:

4.6 Atomic Packing Factor (APF) of HCP

The Atomic Packing Factor (APF) tells us what fraction of the unit cell volume is actually occupied by atoms — a dimensionless measure of packing efficiency.

Step 1: Volume occupied by atoms

Step 2: Volume of unit cell

Step 3: Calculate APF

4.7 Types of Voids in HCP: Tetrahedral and Octahedral

The 26% empty space in HCP is concentrated in well-defined geometric voids between the atoms. There are two types:

(A) Tetrahedral Voids

A tetrahedral void is a space surrounded by 4 atoms at the corners of a regular tetrahedron.

• Number per unit cell: 12 (2 per atom × 6 atoms)
• Radius: r_t = 0.225R
• Accommodates: Small interstitial atoms like hydrogen and carbon

(B) Octahedral Voids

An octahedral void is surrounded by 6 atoms — 3 from the layer above and 3 from the layer below.

• Number per unit cell: 6 (1 per atom × 6 atoms)
• Radius: r_o = 0.414R
• Accommodates: Larger interstitial atoms

5. The c/a Ratio in Real Metals — Deviations from Ideal

In real metals, the c/a ratio deviates from the ideal value of 1.633 because atoms interact through quantum mechanical forces. Some metals are 'more elongated' (c/a > 1.633) and some are 'flattened' (c/a < 1.633) along the c-axis. These deviations significantly affect mechanical properties.

6. Slip Systems in HCP — Why HCP Metals Are Less Ductile

6.1 What is a Slip System?

When a metal deforms plastically, the mechanism is slip — the sliding of one plane of atoms over an adjacent plane. Slip occurs most readily on the most densely packed planes and in the most densely packed directions.

A slip system is defined as a combination of one specific slip plane and one specific slip direction within that plane. The more slip systems a crystal has, the more ductile it is.

6.2 Slip Systems in HCP

In HCP, the close-packed basal plane — denoted (0001) — is the primary slip plane. Within this plane, there are 3 close-packed directions, giving:

7. HCP vs. FCC: A Detailed Structural Comparison

8. Real Metals with HCP Structure and Their Applications

8.1 Magnesium (Mg) — The Lightest Structural Metal

Magnesium is the lightest engineering metal in practical use, with a density of only 1.74 g/cm³ — two-thirds the density of aluminium and one-quarter that of steel. It adopts the HCP structure at room temperature with a near-ideal c/a ratio of 1.624. Magnesium alloys are extensively used in automotive, aerospace, and portable electronics industries where weight reduction is critical.

8.2 Titanium (Ti) — The Aerospace Metal

Titanium exhibits allotropism: it is HCP (alpha phase) below 882°C and transforms to BCC (beta phase) above this temperature. Titanium alloys such as Ti-6Al-4V are used in aircraft frames, jet engine components, medical implants, and submarine hulls, owing to the high strength, excellent corrosion resistance, and good biocompatibility of the HCP phase.

8.3 Zinc (Zn) — The Corrosion Protector

Zinc has a significantly non-ideal c/a ratio of 1.856. It is most famously used for galvanising steel, where a thin zinc coating provides sacrificial cathodic protection to prevent rusting. Zinc is also a key component of brass (Zn-Cu alloy) and die-casting alloys.

8.4 Zirconium (Zr) — The Nuclear Metal

Zirconium has an extremely low neutron absorption cross-section, making it virtually transparent to neutrons. Zirconium alloys (particularly Zircaloy) are used as cladding tubes for nuclear fuel rods in water-cooled reactors.

8.5 Cobalt (Co) — The Magnetic HCP Metal

Cobalt is HCP below 417°C and FCC above this temperature. It is used in permanent magnets, magnetic recording media, high-temperature superalloys, and as a binder in cemented carbide cutting tools (WC-Co).

9. Describing Planes and Directions in HCP: Miller-Bravais Indices

In hexagonal crystals, the standard three-index Miller notation is insufficient because it does not reflect hexagonal symmetry. For this reason, hexagonal crystals use a four-index system called Miller-Bravais indices: (h k i l), where i = −(h+k).

9.1 The Four Axes of the Hexagonal System

• a₁: One of three equal in-plane axes, separated by 120° from each other.
• a₂: Second in-plane axis, 120° from a₁.
• a₃: Third in-plane axis (redundant but needed for symmetry), equal to −(a₁+a₂). This gives i = −(h+k).
• c: The vertical axis, perpendicular to the basal plane.

9.2 Important Planes in HCP

9.3 The Close-Packed Direction in HCP

The most densely packed direction is the <11‑20> direction — connecting nearest neighbours within the basal plane. The Burgers vector of basal dislocations in HCP is b = (1/3)<11‑20>.

10. Solved Problems

11. Practice Multiple Choice Questions

12. Key Takeaways — What You Have Learned
