Lattice and Basis in Crystallography

1. Connecting to Lecture 01

Welcome back to the Crystal Structure Hub. In Lecture 01, we established the most important principle in materials science: the properties of a material are determined not only by its chemical composition, but fundamentally by how its atoms are arranged in space. We saw this through the dramatic contrast between diamond and graphite — identical atoms, completely different crystal arrangements, completely different properties.

We also encountered the idea of periodicity — the regular, repeating nature of atomic arrangements in crystalline solids. But to work with crystal structures rigorously — to calculate their properties, predict their behaviour, and design new materials — we need a precise mathematical language to describe this periodicity. That language is built on two foundational concepts: the lattice and the basis.

2. What is a Lattice?

2.1 Building Intuition — The Wallpaper Analogy

Before we introduce the formal definition, let us build intuition through a familiar example. Imagine a wallpaper with a repeating floral pattern. Look carefully at any single flower in the pattern, and then look at any other flower. They are in exactly the same position relative to their surroundings — the same distance from their nearest neighbours, the same orientation in space. If you closed your eyes, moved to another flower, and opened them again, you would not be able to tell you had moved.

Now imagine reducing that wallpaper to its simplest repeating framework — not the flowers themselves, but just a dot at the centre of each flower. You would have a regular grid of equally spaced dots. That grid is the lattice. It captures the geometry of repetition without specifying what is being repeated.

2.2 Formal Definition of a Lattice

With that intuition established, we can now state the formal definition that is used throughout solid-state physics and materials science, as given in the authoritative textbook by Kittel — Introduction to Solid State Physics:

Three points from this definition deserve careful attention:

• A lattice is a mathematical abstraction, not a physical object. It is a set of points in space — a geometric framework. It does not, by itself, represent atoms. Atoms are introduced through the basis, which we will define shortly.
• Every lattice point has an identical environment. This is the defining constraint. If even one point has a different environment (different number of neighbours, different distances), it is not a perfect lattice.
• The lattice extends infinitely in all directions. Real crystals are finite, but they contain so many repeating units (typically ~10²³ atoms per mole) that the approximation of an infinite lattice is extraordinarily accurate for describing bulk properties.

2.3 Translation Symmetry — The Defining Property

The property that makes a lattice mathematically special is translation symmetry. If you take the entire lattice and shift it by the vector connecting any two lattice points, the lattice looks exactly the same as before. Every point coincides with another point.

This is not merely a mathematical curiosity — it has profound physical consequences. Because a crystal lattice has translation symmetry, electrons moving through the crystal experience a repeating potential. This repetition is precisely what gives rise to the electronic band structure, as we discussed in Lecture 01. Bloch's theorem — the foundational result of solid-state electronic structure theory — applies specifically and exclusively to systems with translation symmetry. Without the lattice, there is no band theory; without band theory, there is no semiconductor physics.

3. Mathematical Description — Primitive Lattice Vectors

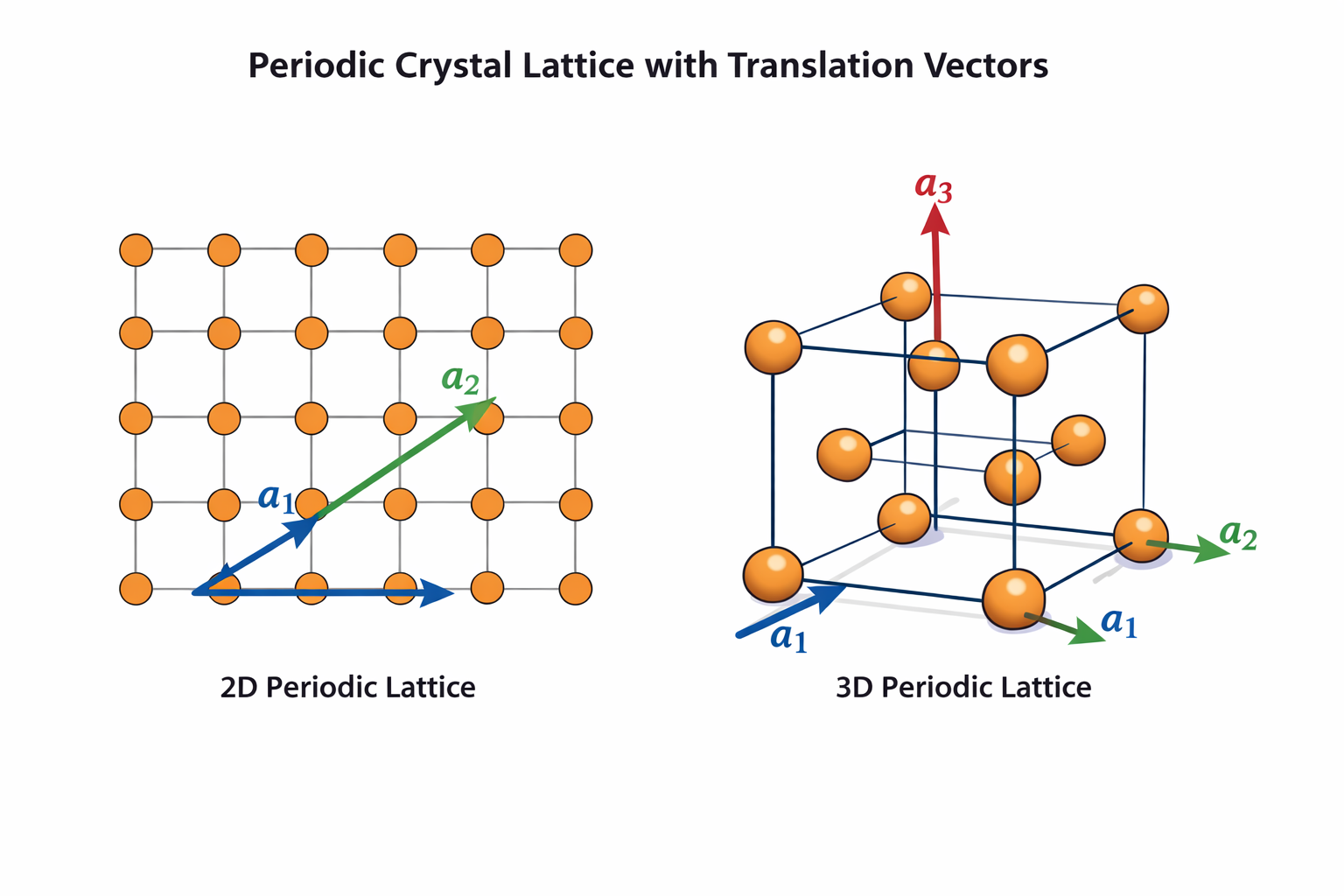

3.1 Primitive Lattice Vectors

To work with a lattice quantitatively, we need a way to generate all lattice points mathematically. This is done using primitive lattice vectors (also called primitive translation vectors), denoted in three-dimensional space as:

These three vectors define the shortest translation distances along the three independent directions in which the lattice repeats. They are the fundamental building blocks of the lattice geometry. Their magnitudes |a₁|, |a₂|, |a₃| are called the lattice parameters (commonly denoted a, b, c), and the angles between them are denoted α (between a₂ and a₃), β (between a₁ and a₃), and γ (between a₁ and a₂). Together, these six quantities (a, b, c, α, β, γ) completely specify the geometry of any crystal lattice — this is covered in full detail in our Lecture 03 on Unit Cell and Lattice Parameters.

3.2 The Lattice Vector Equation

Using the three primitive vectors, the position of any lattice point in the crystal can be expressed as a lattice vector R:

Here, n₁, n₂, n₃ are integers (positive, negative, or zero). This single equation is remarkably powerful: by substituting every possible combination of integer values for n₁, n₂, n₃, you generate the entire infinite lattice — every single lattice point, in any crystal system. The lattice is fully and completely described by just three vectors.

This equation tells us something elegant: the entire infinite, periodic structure of a crystal can be generated from three vectors and a set of integers. This mathematical compactness is what makes the lattice formalism so powerful for calculations in solid-state physics and crystallography.

4. What is a Basis?

We have established that a lattice is a mathematical framework of repeating points. But the lattice alone describes no real material — it is just geometry. To describe an actual crystal, we must specify what exists at each lattice point. That is the role of the basis.

Several important points follow from this definition:

• A basis can be a single atom — as in many elemental metals. In this case, one metal atom sits at each lattice point.
• A basis can be two or more atoms of the same element — for example, in the diamond cubic structure, the basis consists of two carbon atoms, even though the material contains only one element.
• A basis can contain atoms of different elements — as in all compound crystal structures (NaCl, BaTiO₃, Si). In NaCl, the basis is one Na atom and one Cl atom at specific positions relative to each FCC lattice point.
• The position of each atom in the basis is expressed as a vector rᵢ measured from the lattice point, usually written in terms of the primitive vectors: rᵢ = ua₁ + va₂ + wa₃, where u, v, w are fractional numbers between 0 and 1.

4.1 The Basis in Real Crystals — Three Levels of Complexity

The elegance of the lattice-plus-basis framework becomes clear when we apply it to real materials across different levels of complexity:

This table reveals something remarkable: many structurally different materials — copper, sodium chloride, diamond, and silicon — all share the same FCC lattice. What distinguishes them is their basis. The lattice captures the geometry of repetition; the basis captures the chemistry and structural detail.

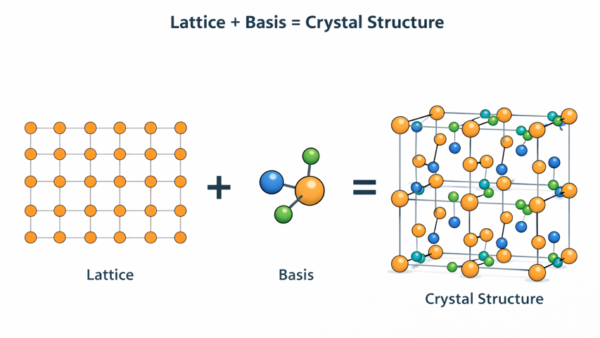

5. Crystal Structure = Lattice + Basis

We are now in a position to fully appreciate the fundamental equation of crystallography. With the lattice vector R locating each lattice point and the basis position rᵢ locating each atom within the basis, the position of the ith atom in the crystal is:

By letting n₁, n₂, n₃ range over all integers and i range over all atoms in the basis, this expression generates the position of every atom in the entire crystal. The entire structure — no matter how complex — is encoded in three primitive vectors and a list of basis positions.

6. Bravais Lattices — The Complete Classification

A natural question arises: how many distinct lattice geometries are possible in three-dimensional space? The answer was determined by the French mathematician Auguste Bravais in 1848, and it is a finite number: exactly 14. These are the 14 Bravais lattices, and they represent all possible ways that points can be periodically arranged in three-dimensional space while maintaining translational symmetry, as formally established by the International Union of Crystallography.

The three cubic Bravais lattices — Simple Cubic (SC), Body-Centred Cubic (BCC), and Face-Centred Cubic (FCC) — are the most commonly encountered in introductory materials science because the majority of elemental metals adopt one of these three structures. The HCP structure is built on a simple hexagonal Bravais lattice with a two-atom basis.

7. Worked Examples — Real Crystal Structures

8. Key Properties of a Lattice

Now that we understand what a lattice is and how it combines with a basis, let us consolidate the key mathematical properties that make the lattice concept so useful in crystallography and solid-state physics.

8.1 Translational Symmetry

If the entire lattice is shifted by any lattice vector R = n₁a₁ + n₂a₂ + n₃a₃, the resulting configuration is identical to the original. This is the defining mathematical property of a lattice, and it directly underlies Bloch's theorem in quantum mechanics — the foundation for all band structure calculations of crystalline materials.

8.2 All Lattice Points Are Equivalent

No lattice point is special or unique. Every point has exactly the same environment — the same number of nearest neighbours, at the same distances, in the same relative directions. This equivalence is what allows the same basis to be repeated identically at every lattice point.

8.3 The Lattice Is a Mathematical Abstraction

This cannot be emphasised enough: the lattice does not represent atoms directly. It represents positions in space. The physical atoms — with their specific species, positions, and bonding — enter through the basis. Many students confuse "corner atoms" in a unit cell diagram with lattice points; it is important to remember that atoms sit at or near lattice points (via the basis), but they are not the lattice points themselves.

8.4 Primitive vs Conventional Cells

The smallest possible unit cell that captures all lattice information is the primitive cell — it contains exactly one lattice point and reproduces the lattice by translation alone. However, for cubic, tetragonal, and other high-symmetry lattices, a larger conventional cell is often used because it more clearly displays the crystal symmetry, even though it contains more than one lattice point. This distinction is discussed in full in our Lecture 03 on Unit Cell and Lattice Parameters.

9. Applications in Materials Science

The lattice-and-basis framework is not merely a theoretical convenience — it is the working language of experimental and computational materials science across all subfields.

9.1 X-ray Diffraction and Structure Determination

When X-rays interact with a crystal, they scatter from every atom. The diffraction pattern — the set of observed intensities at different angles — depends on both the lattice geometry (which determines the angles at which constructive interference occurs, via Bragg's Law) and the basis (which determines the intensities of each diffraction peak through the structure factor). By analysing a complete diffraction pattern, crystallographers can reverse-engineer both the lattice type and the basis — determining the complete crystal structure. This is the primary tool of structural crystallography at the Cambridge Crystallographic Data Centre and every modern materials characterisation laboratory.

9.2 Electronic Band Structure Calculations

The electronic properties of a crystal — its band structure, density of states, and Fermi surface — are computed by solving the Schrödinger equation for electrons in the periodic potential created by the crystal's lattice and basis. The periodicity of the lattice is encoded in the reciprocal lattice (the Fourier transform of the real-space lattice), and the basis determines the strength of the periodic potential at each reciprocal lattice point through the structure factor. This underpins all density functional theory (DFT) calculations used to design new semiconductors, battery materials, and quantum devices.

9.3 Nanotechnology and Thin Film Engineering

When growing crystalline thin films — for example, depositing a magnetic film on a semiconductor substrate — the lattice mismatch between substrate and film creates strain that modifies both the film's crystal structure and its electronic, magnetic, and ferroelectric properties. The recently demonstrated topological crystalline insulator in bilayer SnTe (Nature Communications, 2025) is a direct example: the compressive strain imposed by the NbSe₂ substrate modifies the SnTe lattice parameters, stabilising a topological quantum phase that does not exist in the unstrained material. The basis (SnTe atom positions) remains the same; the lattice geometry changes under strain — and that geometric change transforms the quantum electronic state.

9.4 Semiconductor Doping and Defect Engineering

When impurity atoms are introduced into a semiconductor lattice (doping), they substitute for lattice basis atoms or occupy interstitial positions between lattice points. The difference in size, charge, and bonding between the impurity and the host basis atom creates local strain fields and introduces electronic states within the band gap. All of silicon's remarkable properties as a semiconductor — its ability to be engineered into n-type or p-type material — arise from understanding how substitutional impurities modify the crystal's lattice-plus-basis structure at specific sites.

9.5 Ferroelectric and Piezoelectric Materials

In ferroelectric perovskite materials like barium titanate (BaTiO₃), the basis positions of the constituent atoms within the unit cell determine whether the crystal is ferroelectric. Above the Curie temperature, Ti⁴⁺ sits at the exact centre of the oxygen octahedron — centrosymmetric basis. Below the Curie temperature, Ti⁴⁺ displaces off-centre — breaking the centrosymmetry of the basis — and spontaneous polarisation appears. The lattice remains cubic; only the basis changes. Yet this small displacement in the basis position generates the entire phenomenon of ferroelectricity, as demonstrated in detail in Dr. Verma's own research on perovskite crystal structures.

10. Series Navigation

11. Practice Questions

12. Key Takeaways
